Deck Construction

Contact your local building department to inquire about permit requirements for deck construction. Review all applicable building codes, zoning ordinances, and homeowner association rules. Pay close attention to requirements for footing depth, ledger board attachment, railing height and spacing, and material specifications. Understanding these regulations upfront will prevent costly mistakes and ensure compliance.

Determine the desired size, shape, and height of your deck. Sketch a plan that includes the overall dimensions, the position of posts, beams, joists, and decking boards. Decide on the type of railing and any special features. Create a site plan that accurately reflects the deck's location on your property, noting distances from property lines and any existing structures. This plan will be crucial for both permitting and construction.

Using stakes and string lines, accurately lay out the perimeter of the deck and the exact positions for each footing based on your design. Use a post hole digger or auger to excavate holes for the footings. The depth of these holes must extend below the local frost line to prevent heaving. Ensure the holes are wide enough to accommodate the concrete forms and provide adequate support.

Place concrete form tubes (Sonotubes) into the excavated footing holes, ensuring they are plumb and centered. Mix concrete according to the manufacturer's instructions or have ready-mix delivered. Pour the concrete into the forms, using a piece of rebar or a stick to consolidate the concrete and remove air pockets. Level the top of the concrete to the desired height, often with a slight crown to direct water away.

Once the concrete footings have fully cured, attach appropriate post anchors (e.g., J-bolts embedded in concrete, or post bases that sit on the concrete). Ensure the anchors are centered and level. Cut the deck posts (typically 4x4 or 6x6 pressure-treated lumber) to the required height, accounting for the beam and joist assembly. Securely fasten the posts to the anchors using specified fasteners, ensuring they are plumb.

Identify the house's rim joist above the desired deck height. Mark the ledger board's position, ensuring it is level and at the correct height for the deck slope. Remove siding if necessary and install flashing behind the ledger board. Secure the ledger board to the rim joist using appropriately sized lag screws or through-bolts at specified intervals, following local code requirements for spacing and type of fastener. Ensure the ledger board is level.

Cut the beams (typically doubled-up 2x lumber) to the required lengths. Lift the beams into place and rest them on top of the posts (if using post caps) or attach them to the sides of the posts using appropriate connectors and fasteners. Ensure the beams are level and properly aligned. If the deck spans across beams, ensure they are adequately sized for the span and load.

Cut the joists (e.g., 2x6s or 2x8s pressure-treated lumber) to length. Mark the joist layout on the beams and ledger board, typically spaced 16 inches on center. Attach the joists using joist hangers secured to the ledger board and beams. Ensure all joists are parallel and square to the ledger. Install blocking between joists as required by code for lateral stability.

Begin laying the deck boards at the edge of the deck, typically starting from the house. Ensure the first board is straight and perpendicular to the joists. Fasten each deck board to every joist using deck screws or hidden fasteners. Maintain a consistent gap between boards (e.g., 1/8 inch) to allow for expansion and drainage. Stagger the joints of deck boards so they do not fall on the same joist. Trim any overhang to create a clean edge.

Build railing sections according to your design and local code requirements (e.g., baluster spacing no more than 4 inches apart). Typically, this involves attaching top and bottom rails between newel posts. Securely attach the railing sections to the deck frame or posts using appropriate hardware. Ensure the railing height meets code (typically 36 inches for residential decks).

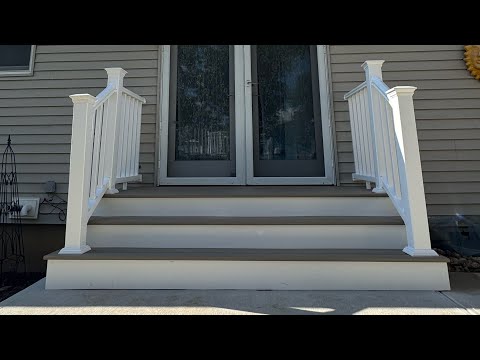

Calculate the total rise of the stairs (from the ground to the deck surface). Determine the number of steps and the rise and run for each step based on local building codes (typically a rise of 7-7.25 inches and a run of 10-11 inches). Cut stair stringers to create the steps. Attach the stringers securely to the deck frame and to a solid footing or landing at the base. Install treads and risers.

Sweep the deck to remove any debris. Lightly sand any rough spots, sharp edges, or splinters. Apply a quality exterior wood stain, sealant, or paint according to the product manufacturer's instructions. This will protect the wood from UV rays and moisture, extending the life of your deck and improving its aesthetic appeal.

Walk the entire deck, checking all connections, fasteners, and structural components to ensure they are secure and properly installed. Test railings and stairs for stability. Remove all tools, materials, and debris from the construction site. Dispose of waste materials properly.
